Create Fabric Nodes

This tutorial walks you through creating peer and orderer nodes for your Fabric network in ChainLaunch.

This tutorial walks you through creating peer and orderer nodes for your Fabric network in ChainLaunch.

Prerequisites

Create Nodes via the UI

Single Node

  1. Go to Nodes in the left sidebar
  2. Click Fabric Node
  3. Select the organization from the dropdown
  4. Choose the node type: Peer or Orderer
  5. Configure network settings (listen address, external endpoint) or keep defaults
  6. Click Create Node

The node will start automatically and appear in the nodes list with status RUNNING.

Bulk Create (Multiple Nodes)

Use bulk create to set up multiple peers and orderers at once:

  1. Go to Nodes in the left sidebar

Nodes section

  1. Click Bulk Create next to Fabric Node

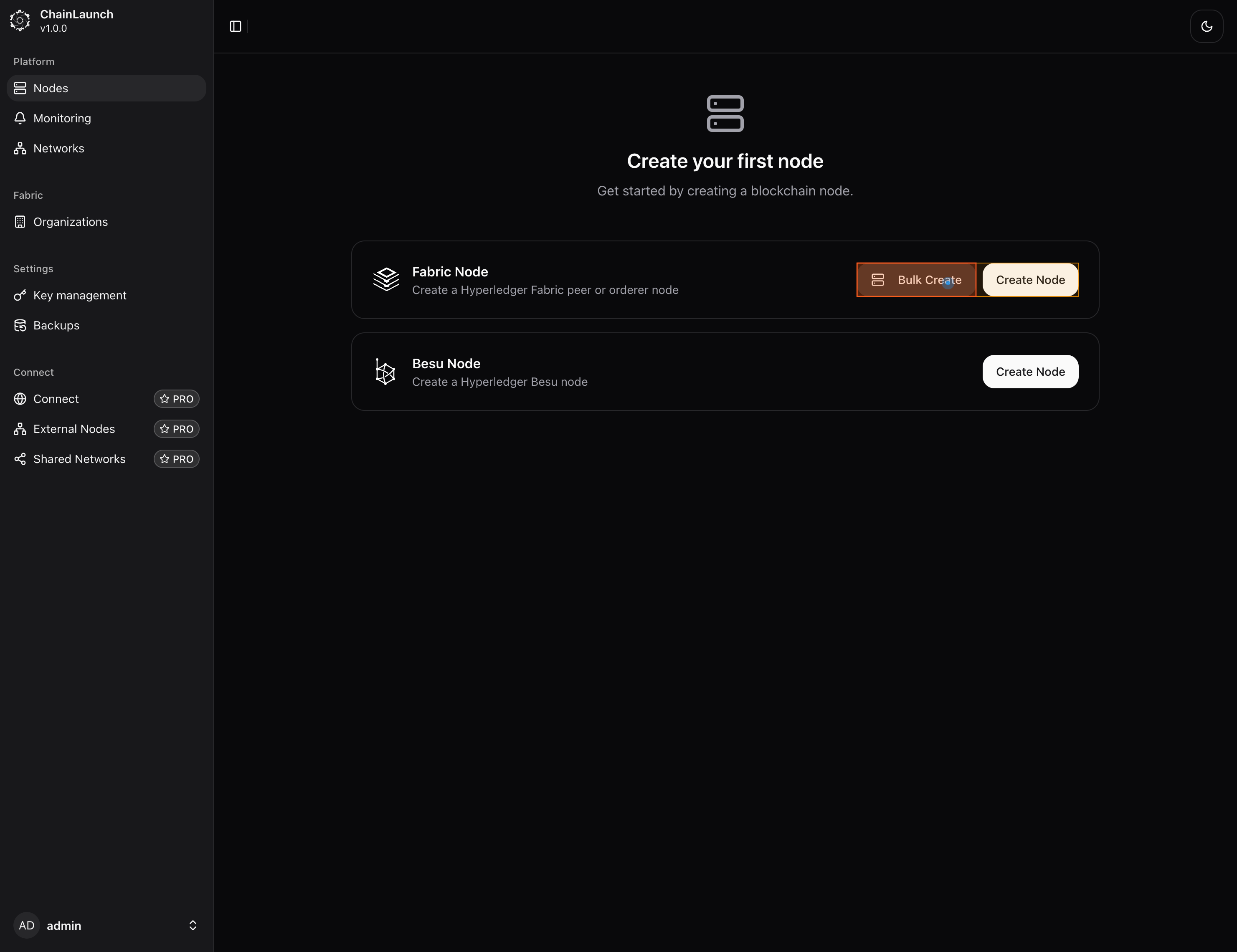

Bulk create button

  1. Select the organization from the dropdown (e.g., Org1MSP)

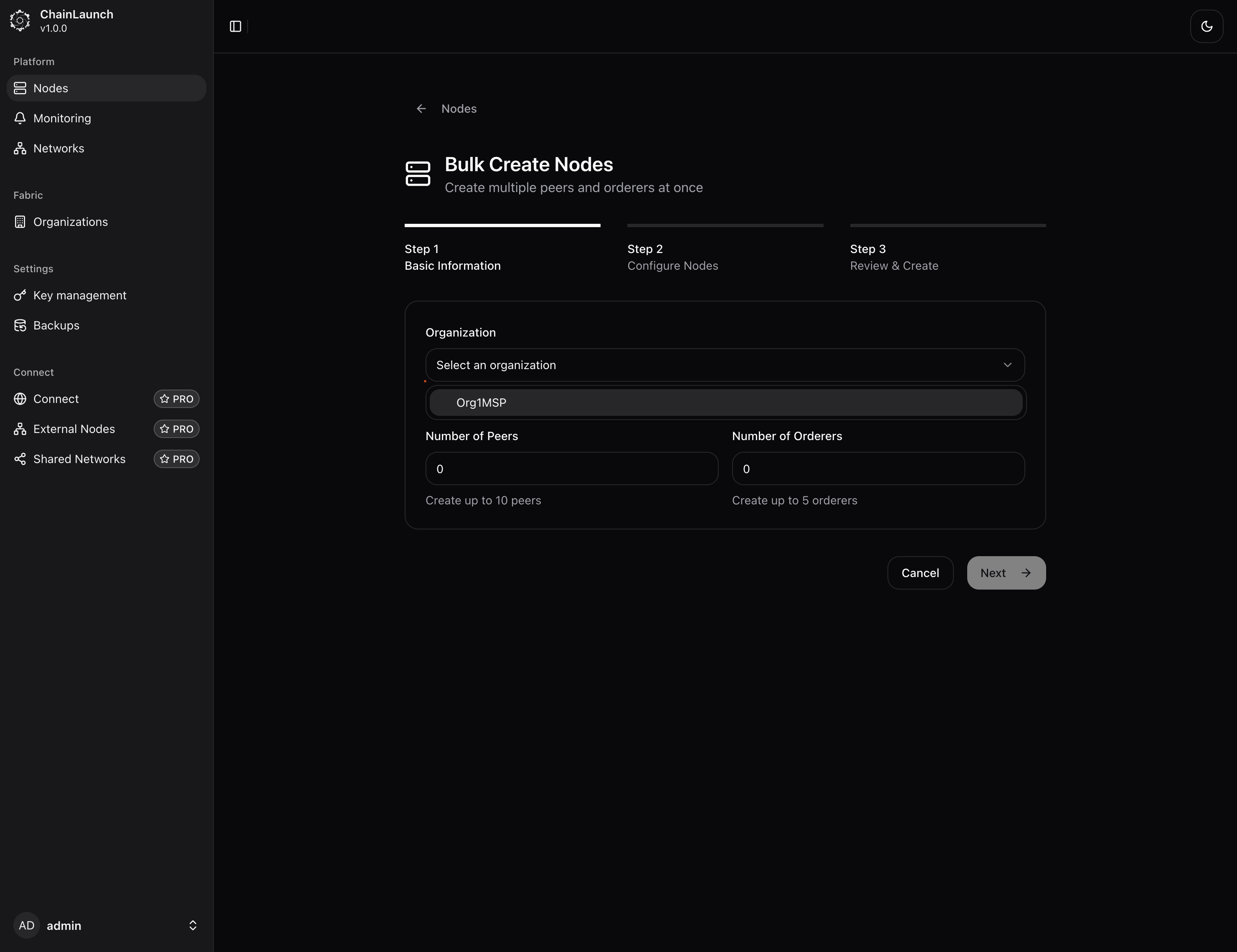

Select organization

  1. Enter the Number of Peers (e.g., 2)

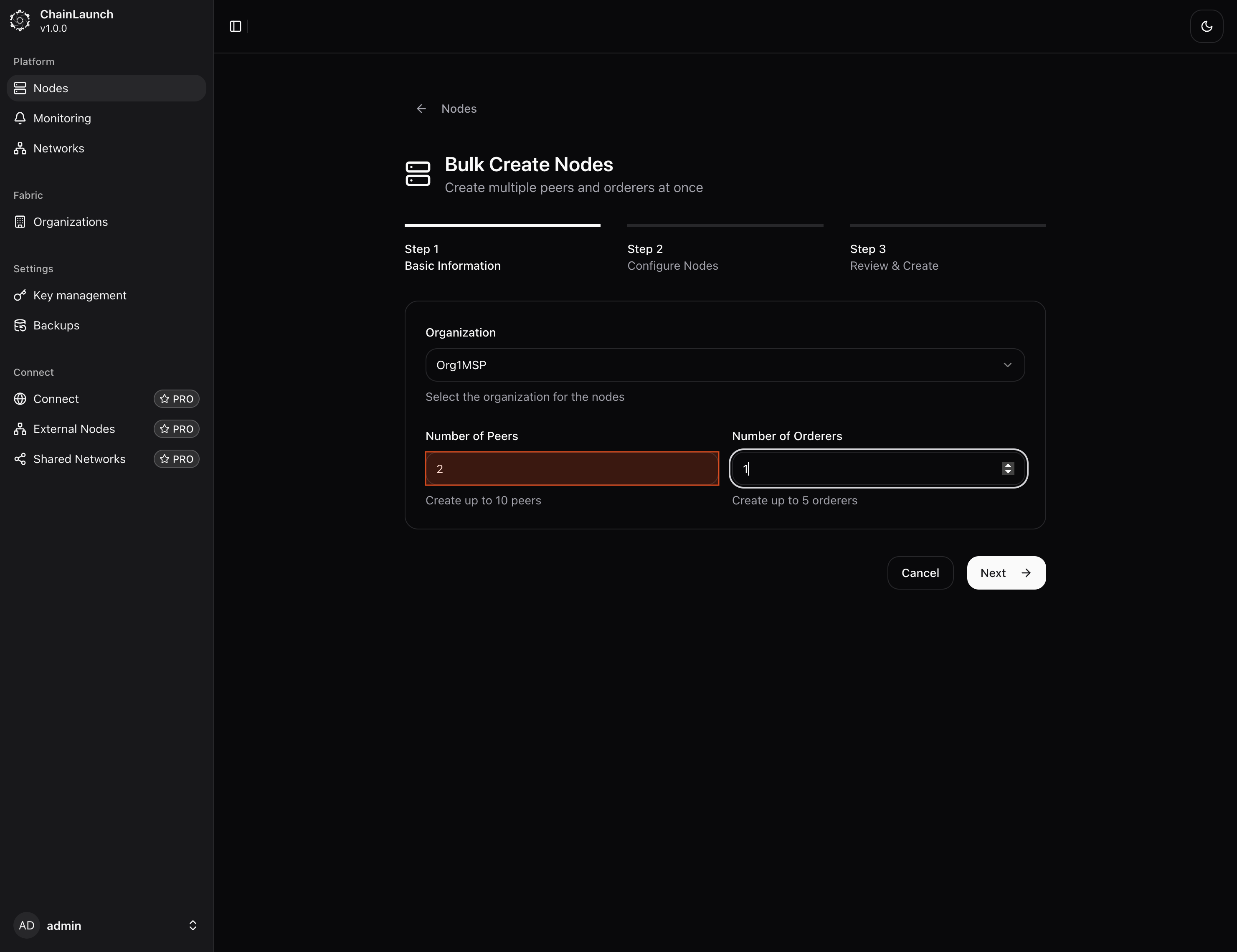

Number of peers

  1. Enter the Number of Orderers (e.g., 3)

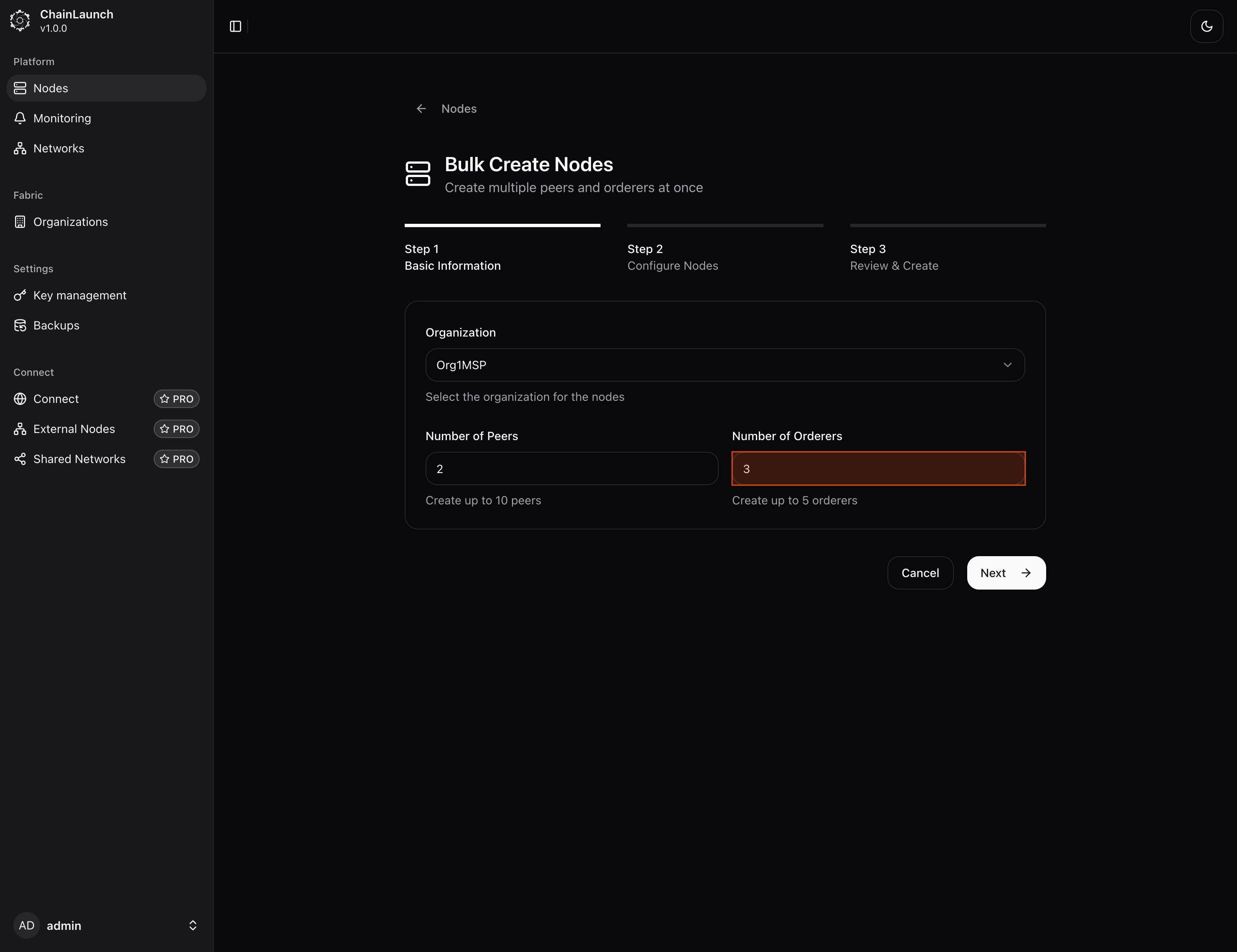

Number of orderers

  1. Click Next to review network configuration

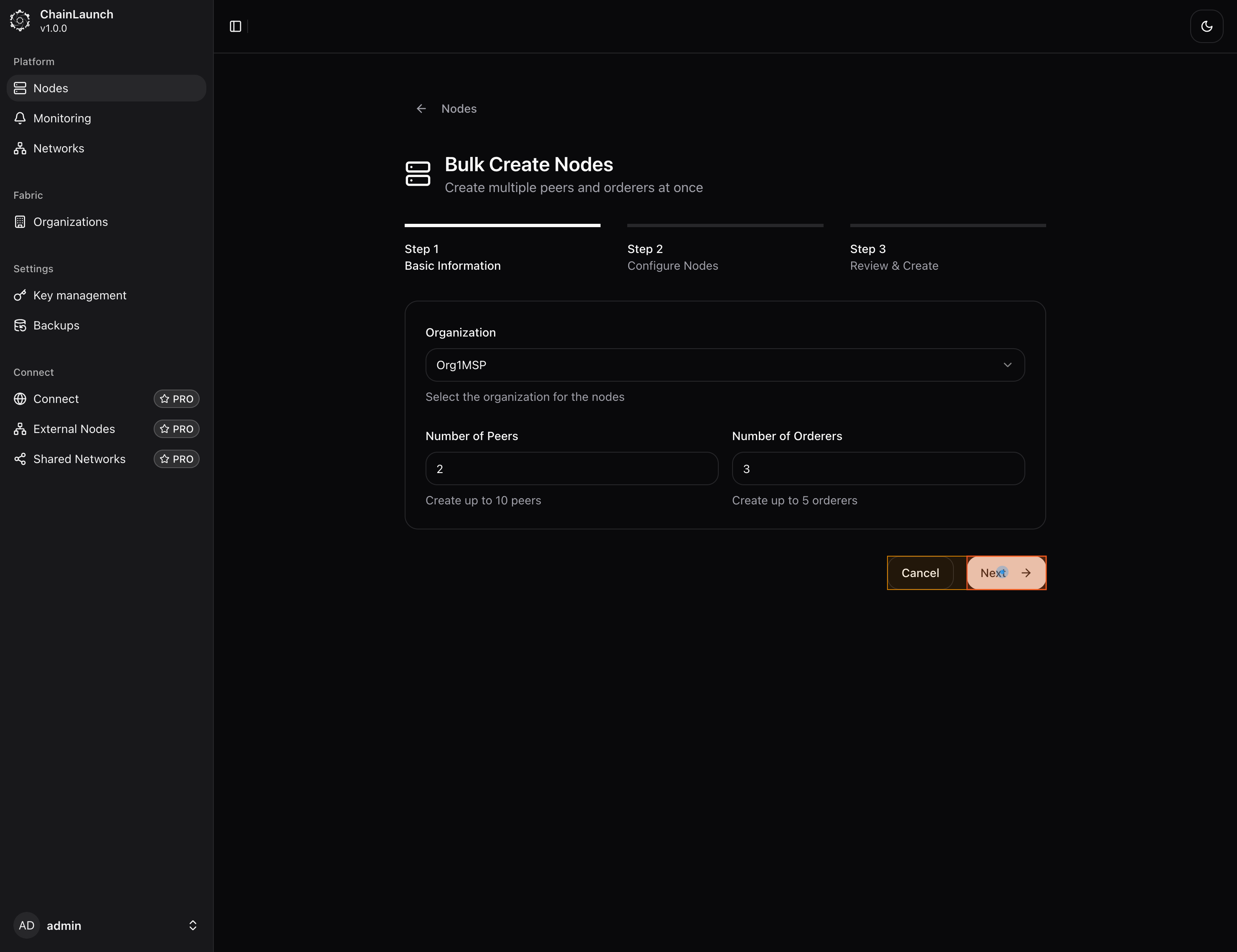

Next step

  1. Review the settings and click Next again

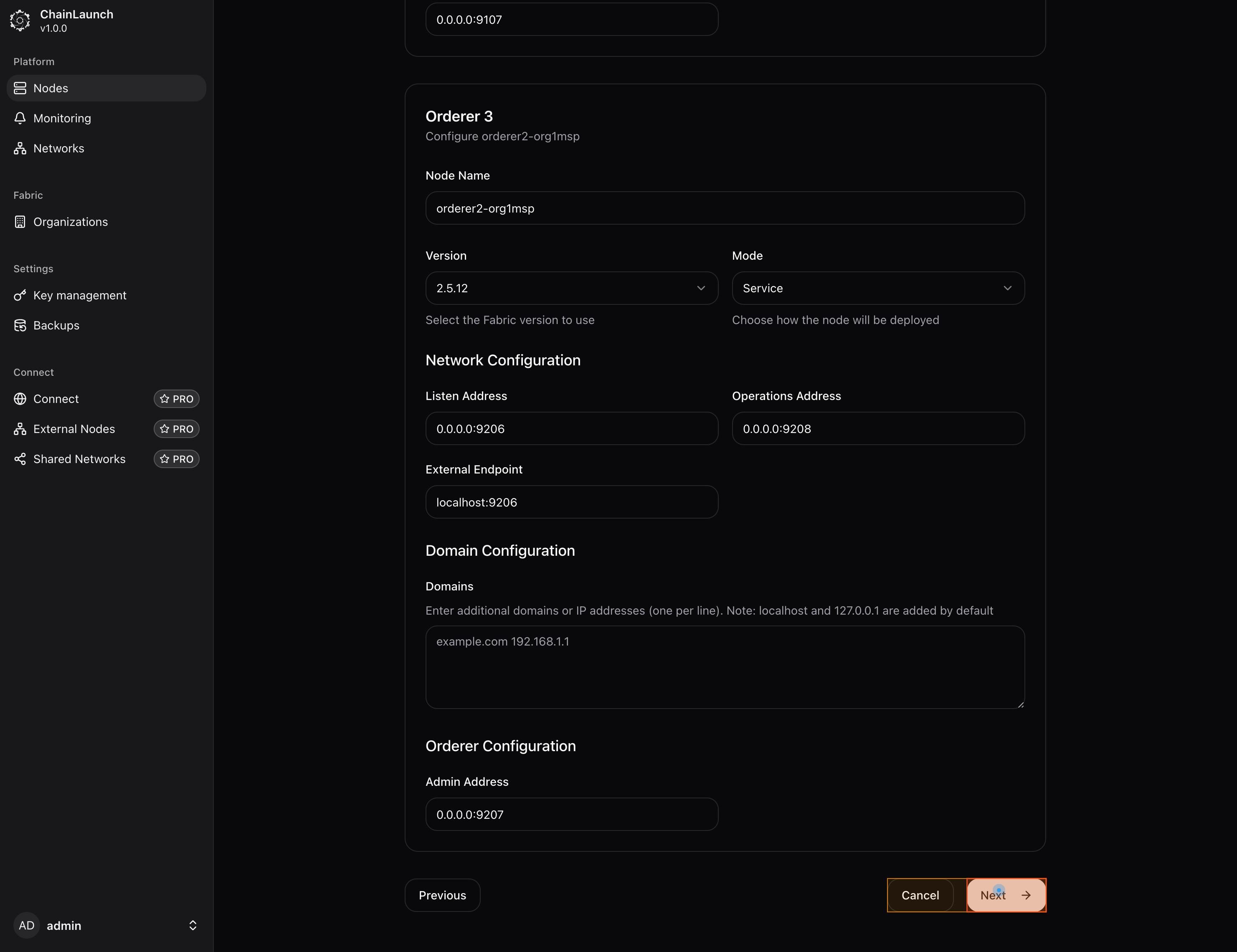

Review settings

  1. Click Create Nodes to start provisioning

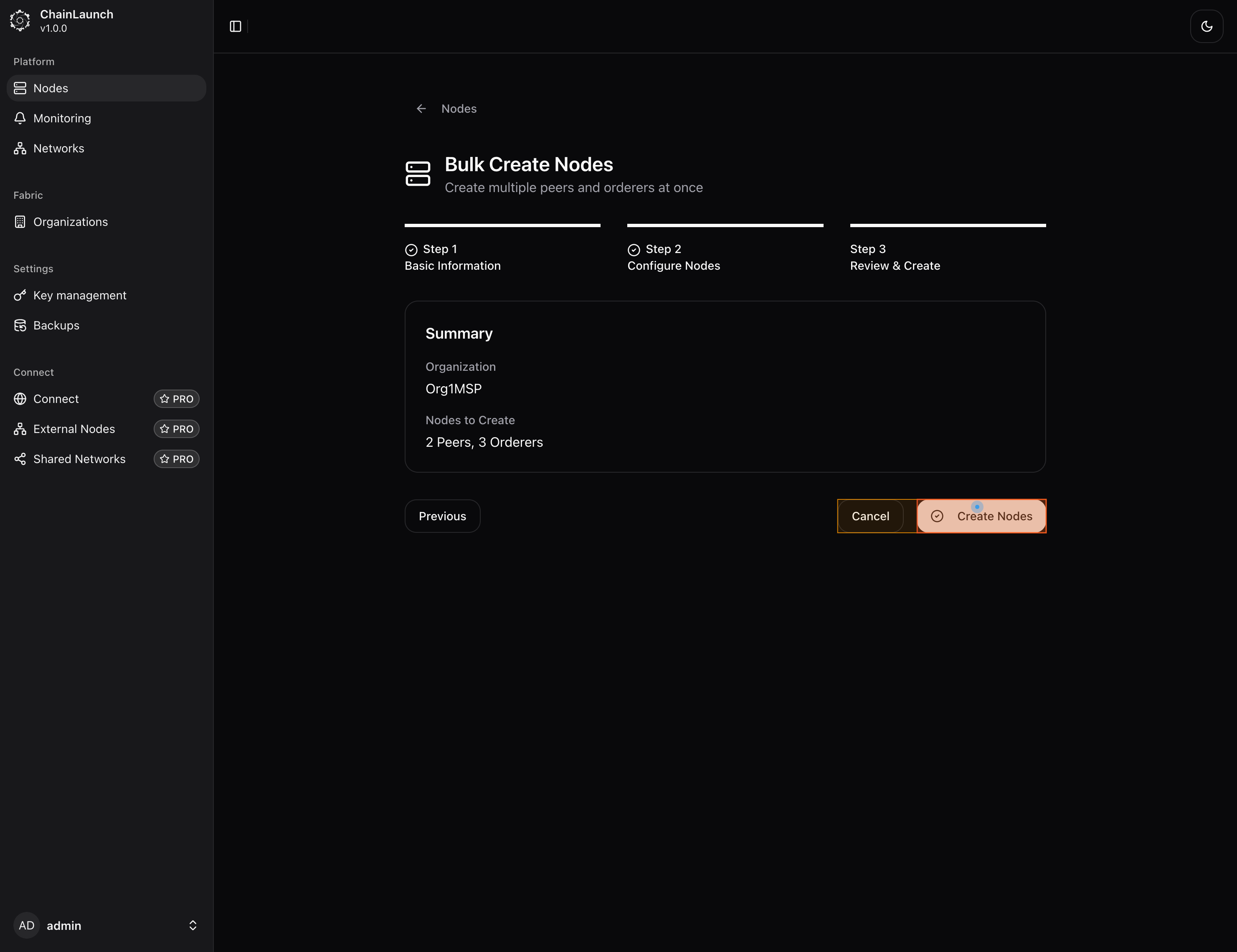

Create nodes

  1. All nodes are created and running

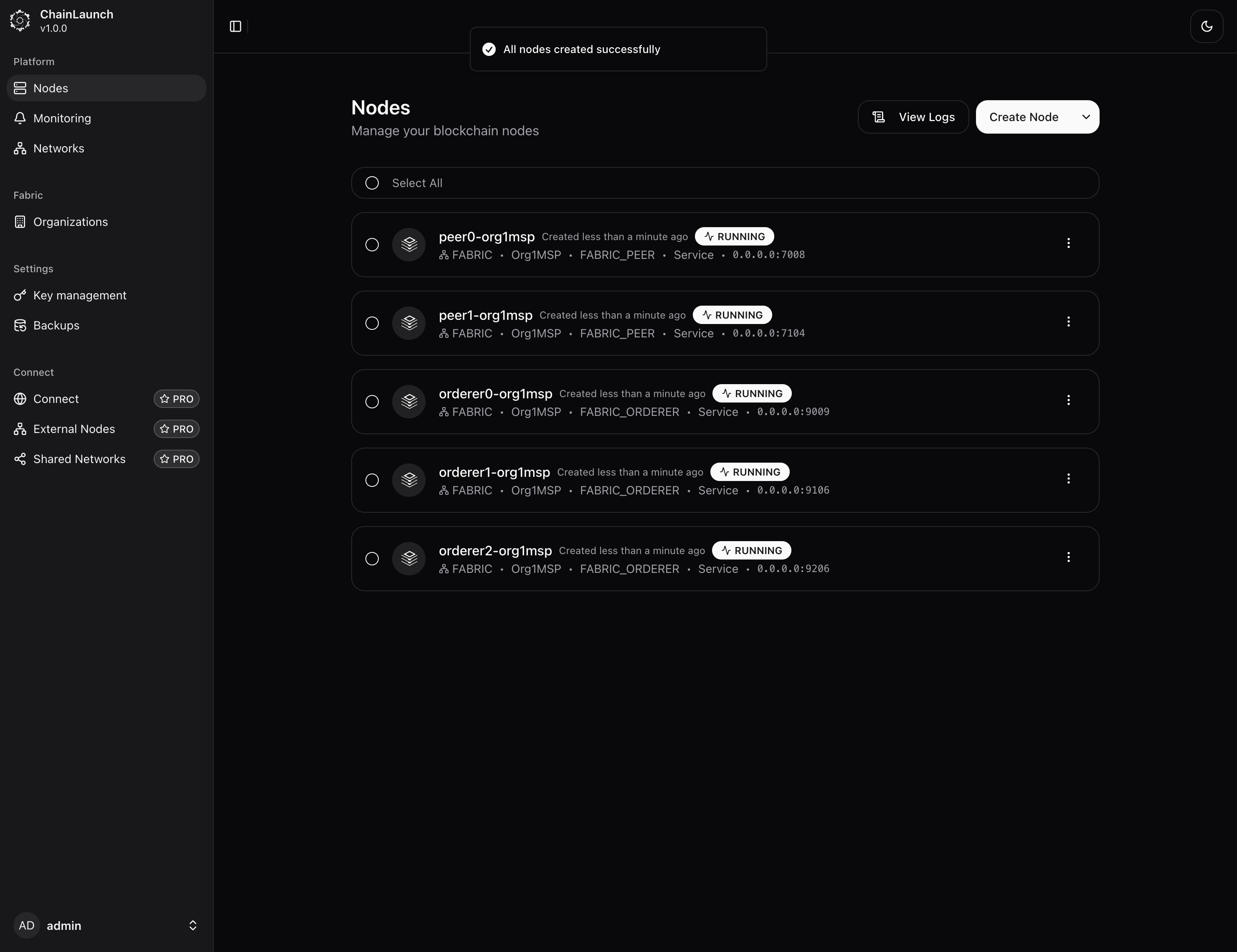

Nodes created

Create Nodes via CLI

# Create a single peer
chainlaunch node create --type peer --org Org1MSP

# Create a single orderer
chainlaunch node create --type orderer --org Org1MSP

# Bulk create: 2 peers + 3 orderers for Org1MSP
chainlaunch testnet fabric \
  --name my-network \
  --org "Org1MSP" \
  --peerOrgs "Org1MSP" \
  --ordererOrgs "Org1MSP" \
  --peerCounts "Org1MSP=2" \
  --ordererCounts "Org1MSP=3"

Create Nodes via CLI

# Create a peer node
chainlaunch fabric peer create \
  --name peer0-org1 \
  --org-id 1 \
  --msp-id Org1MSP

# Create an orderer node
chainlaunch fabric orderer create \
  --name orderer0-org1 \
  --org-id 1 \
  --msp-id Org1MSP

Node Types

Type Purpose Minimum per network
Peer Endorses transactions, commits blocks, hosts chaincode 1 per org
Orderer Orders transactions into blocks, manages channels 1 (3+ recommended for fault tolerance)
CA Issues certificates for org identities 1 per org (created automatically)

Tips

  • Orderer count: Use 3 or 5 orderers for crash fault tolerance (CFT). A single orderer works for development but has no fault tolerance.
  • Peer count: Start with 1 peer per org for PoC. Add more for high availability or to separate endorsement from committing.
  • Resource planning: Each peer needs ~512MB RAM and each orderer ~256MB RAM minimum.

Next Steps
